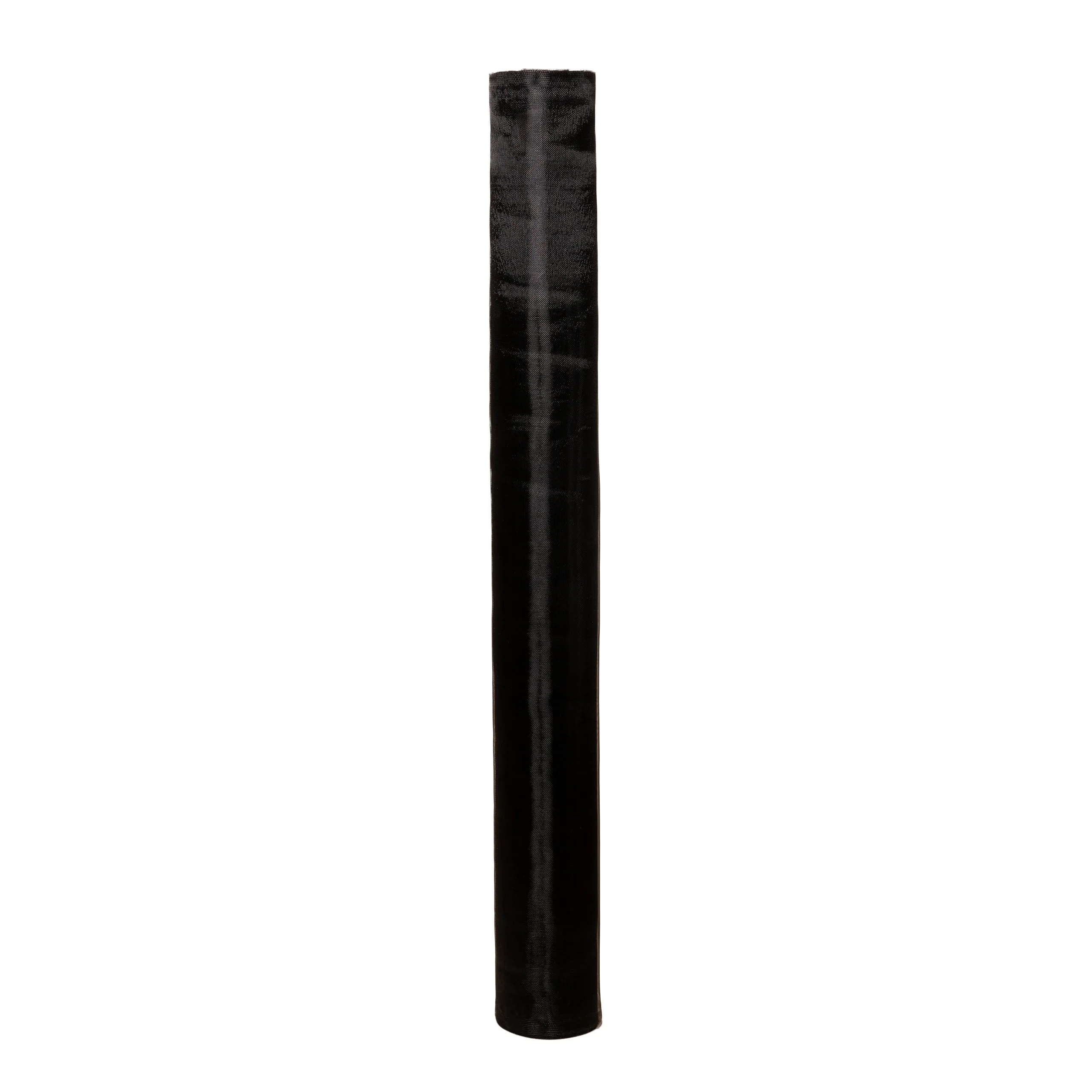

Black Polyester Mesh 24

Black Polyester Mesh 24 is a regular, plain-weave mesh made from polyester yarn. With its uniform and consistent structure, this mesh is a practical option for applications that require a lightweight yet durable mesh surface. Its black color also makes it suitable for different building applications, especially doors and windows, where the mesh can be cut to the required dimensions and prepared for installation.

The structure of a mesh is one of the most important factors affecting its performance. Black Polyester Mesh 24 is manufactured with regularly arranged longitudinal and transverse yarns, creating an even mesh surface. This structure allows air to pass through while also providing a separating or protective layer. As a result, the product can be considered for various construction and manufacturing projects rather than being limited to a single application.

Technical Specifications of Black Polyester Mesh 24

One of the main specifications of this product is its 24 mesh count. This means that there are 24 openings per inch of mesh length. Mesh density is an important factor when selecting a mesh and should be chosen according to the intended application and installation conditions.

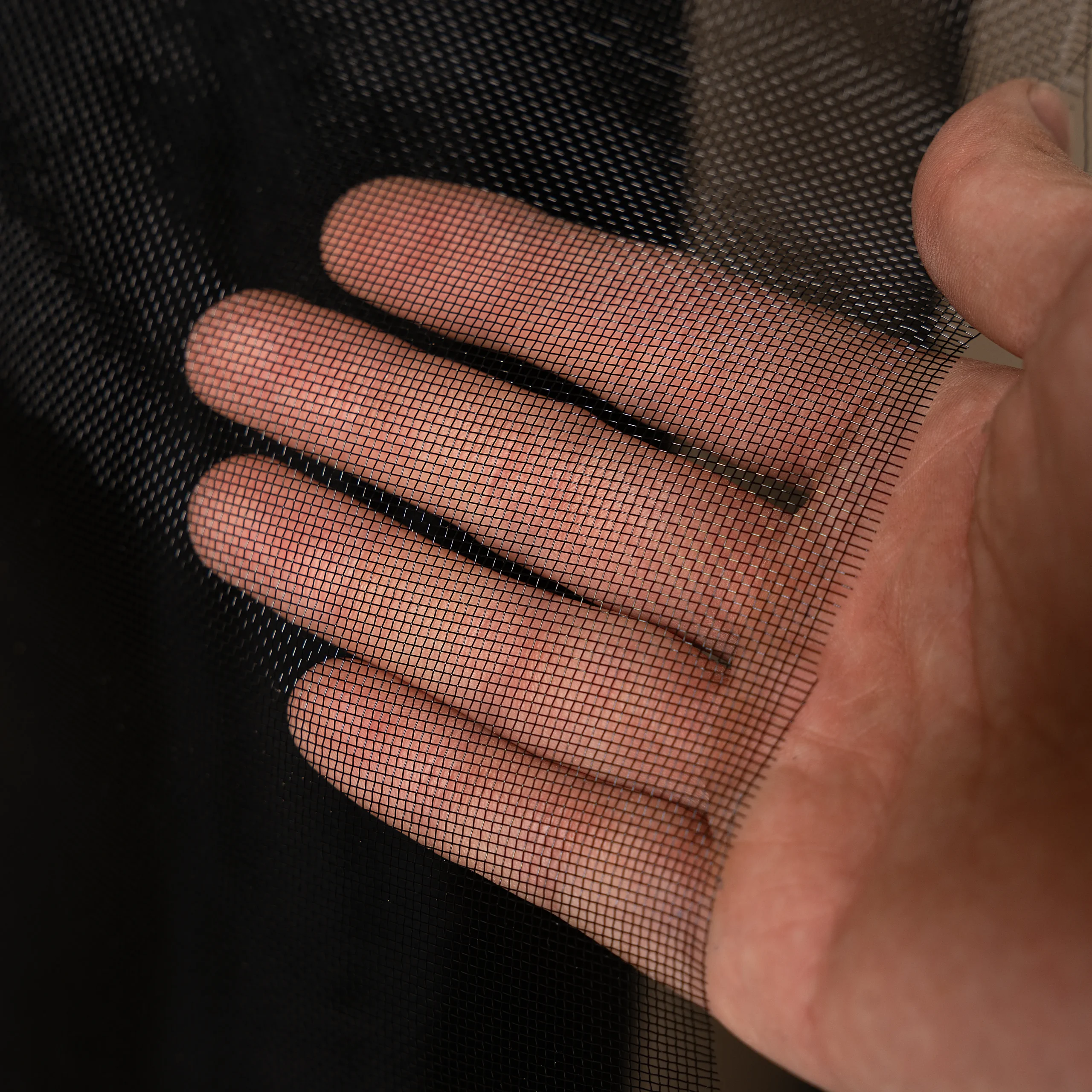

The product has approximately 9.5 openings per centimeter. The uniform arrangement of these openings gives the mesh a consistent and orderly appearance. Its weave type is plain, in which the warp and weft yarns regularly cross over each other to form the main mesh structure.

The yarn material is polyester, with a yarn thickness of 0.20 mm. Polyester yarn makes this mesh suitable for applications requiring a synthetic fiber with a stable structure. The product also features a double-woven selvedge, which can be useful during cutting, sewing, and preparation.

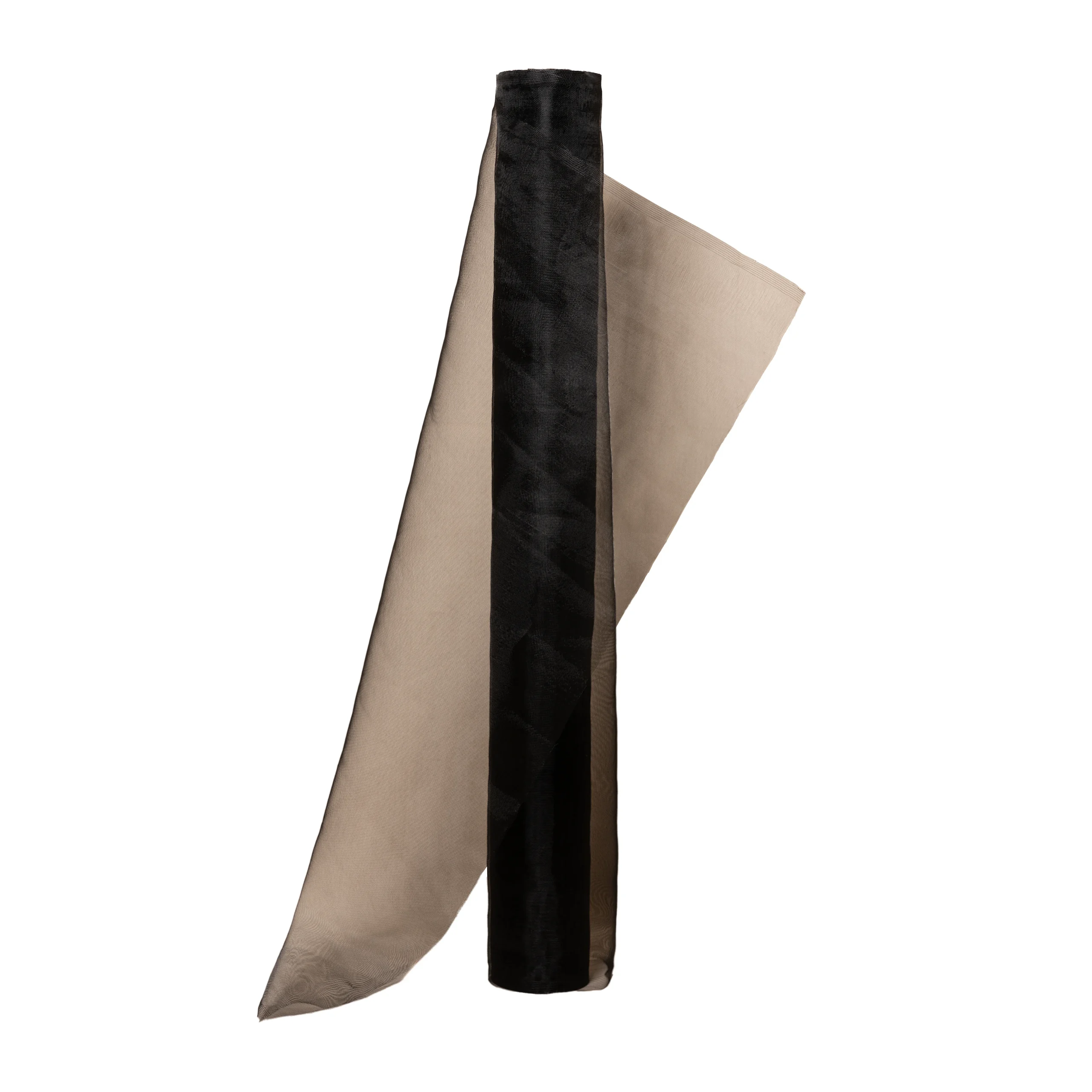

In terms of dimensions, Black Polyester Mesh 24 is manufactured in a width of 120 cm. This width allows the mesh to be used in different projects and cut according to the required installation dimensions.

Appearance and Structural Features

The black color is one of the important visual characteristics of this mesh. Black mesh is commonly selected for applications where the final appearance is important, as it can coordinate well with different frames and structures.

The mesh structure also allows the material to provide coverage without creating a completely closed surface. This characteristic is particularly useful in applications where air circulation and airflow are required. Therefore, Black Polyester Mesh 24 can be considered for areas of a building where a protective or separating mesh layer is needed.

The double-woven selvedge is another useful feature. In many projects, the mesh needs to be cut and then attached to a frame, tape, or other components. A properly finished edge can simplify preparation and installation while providing a more uniform edge.

Temperature Resistance of Black Polyester Mesh 24

Black Polyester Mesh 24 has a maximum temperature resistance of 164°C. Temperature resistance is an important technical specification when selecting mesh for different environments.

Under typical applications such as doors, windows, or magnetic screen systems, the mesh is generally not exposed to extremely high temperatures. Therefore, this specification can mainly be considered as one of the technical properties of the material. For specialized applications, the actual operating temperature should be compared with the technical specifications of the mesh.

Black Color Without Significant Impact on Visibility

One notable characteristic of Black Polyester Mesh 24 is its black color. Contrary to a common assumption, a black mesh does not necessarily mean that visibility through the mesh is significantly reduced or that the interior space becomes noticeably darker.

The regular openings in the mesh allow light to pass through and provide visibility of the area behind the screen. When installed on a door or window, the mesh creates a continuous protective layer without completely blocking the opening. Natural light can therefore continue to enter the interior, depending on lighting conditions.

This characteristic is particularly useful when using Black Polyester Mesh 24 for doors and windows. It provides a uniform black appearance and a physical barrier at the opening while maintaining a degree of visibility and light transmission.

For this reason, the product can also be considered by users looking for black magnetic door screen mesh who want to create a protective screen while maintaining visibility and natural light. Actual visibility and light transmission depend on factors such as lighting intensity, viewing distance, and installation conditions.

Black Polyester Mesh 24 for Doors and Windows

Due to its mesh structure, polyester construction, and black color, one of the main applications of Black Polyester Mesh 24 is use as door and window screen material. The mesh can be installed over a suitable frame or structure to create a screened opening.

Because of its uniform structure and black appearance, Black Polyester Mesh 24 can be used for windows, entrance doors, balconies, terraces, and other areas requiring a mesh covering. It can create a physical barrier that helps limit the entry of many insects while maintaining airflow.

One of the more important applications of this product, however, is its use as material for making a magnetic door screen.

Black Polyester Mesh 24 for Magnetic Door Screens

One practical application of Black Polyester Mesh 24 is using it as the main mesh material for producing or assembling a magnetic door screen. In this application, the mesh is cut according to the door dimensions, and magnetic strips are then installed along the required sections.

A magnetic screen provides a way to cover an entrance without requiring a conventional door to remain closed. The central section is divided into two parts, with magnetic strips installed along the meeting edges. When a person passes through, the central section opens, and after passage, the magnets pull the two sides back together.

This feature is particularly useful for doors that are frequently used throughout the day. Kitchen entrances, terraces, balconies, courtyards, villas, stores, and some workplaces can be potential locations for magnetic door screens.

How to Convert Polyester Mesh into a Magnetic Screen

To make a magnetic screen, the exact door dimensions should first be measured. The mesh is then cut according to the required dimensions. The edges are prepared, and magnetic strips are installed in the specified areas.

Accurate measurement and proper magnet installation are important. The magnetic strips should be positioned so that both sides of the mesh can align correctly and reconnect after a person passes through.

The double-woven selvedge can also be beneficial during this process because the mesh edges are often used for sewing or attaching side strips. A well-structured edge can make preparation and assembly easier.

Where Can Magnetic Door Screens Be Used?

A magnetic door screen can be useful in houses, apartments, villas, stores, and spaces with direct access to the outdoors. It can be particularly suitable for doors that remain open more frequently during warmer seasons while still requiring a mesh barrier across the entrance.

In residential properties, magnetic screens can be used for terrace and balcony doors. In villas and houses with yards, they can be installed on frequently used entrances. Depending on the environment, magnetic screens may also provide a simple and practical solution for certain stores and workplaces.

One advantage of this type of screen is that it does not create a significant obstacle to movement like a conventional door. The flexible mesh allows a person to pass through the center, after which the magnets bring the two sections back together.

Conclusion

Black Polyester Mesh 24 is a plain-weave polyester mesh made with 0.20 mm yarn and featuring 24 openings per inch. It has approximately 9.5 openings per centimeter, a width of 120 cm, a black color, and a double-woven selvedge. Its maximum temperature resistance is 164°C.

Its regular structure, black appearance, and ability to be cut and prepared for installation make it suitable for a range of applications. One of its main uses is as door and window screen material. It can also be used to make magnetic door screens, making it a practical option for entrances that require easy opening and closing.

By installing magnetic strips around the mesh, it can be converted into a magnetic screen that opens from the center when someone passes through and closes again with the help of the magnets. Therefore, if you are looking for black polyester mesh for a magnetic door screen or for use on doors and windows, Black Polyester Mesh 24 can be a practical option to consider.
